2018 new type Solar Strut Roll Forming Machine PLC Control Full Automatic Durable made in China

Brand Name : LBM

Certification : certificate of origin

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 30-40

Material : CR12 Mould Steel, With Quenched Treatment

Color : Blue

Roller Stations : 16 Stations

Contact Now

1. Description of Solar Strut Roll Forming Machine:

Color steel glazed tile is made by using color steel plate as the primary plate, by several processes, such as Rolling, Molding, Cutting, etc. become the final plate. It’s colorful and elegance.Because of it’s good characteristics, such as light weight, high strength, nice waterproofing, easy installation, it is widely used for the villa roofs, City flat-to-slope projects,tourist spot buildings and so on. LBM is producing the high quality color steel glazed tile roll forming machines, and exported to India, Thailand, South-Africa, Iran, Russia, etc.

2. Technical details of Solar Strut Roll Forming Machine:

Machine Specifications
Weight	About 11000kgs
Size	About 11m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material	Pre-painted Galvanized Steel Coils
Thickness	0.4-0.6mm
Coil width	1220mm
Yield Strength	235Mpa
Main Technical Parameters
Diameter of forming rollers shafts	75mm
Roll Forming Speed	10-15m/min
Production Speed	4m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 5.5kw
Electric Power requirement	Hydraulic unit motor power: 11kw
Electric voltage	According to customer’s requirement

2018 new type Solar Strut Roll Forming Machine PLC Control Full Automatic Durable made in China Manufactures

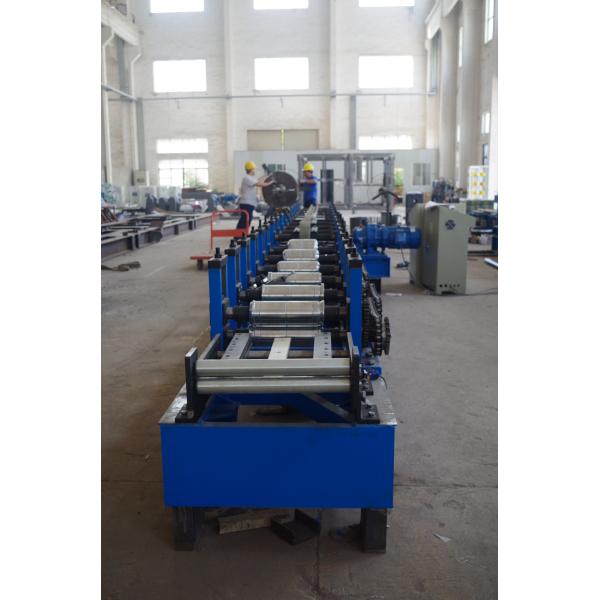

2018 new type Solar Strut Roll Forming Machine PLC Control Full Automatic Durable made in China Images
